Typical application fields
- Broadband amplification
- Small signal amplifier or preamplifier
- Antenna and space broadband transmission
- Experimental test
Description

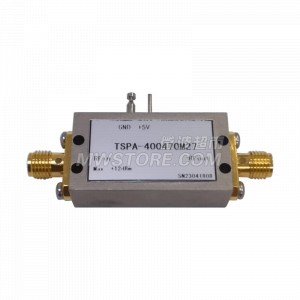

| model |
TSPA-400470M27 |
| working voltage |
Tianhua Zhongwei |
| Connector 1 Series |
SMA |
| Connector 1 Gender |
Female |
| Connector 2 Series |
SMA |
| Connector 2 Gender |
Female |
| Power |
- |
Electrical Specifications
| Gain |
17dB typ |
| Gain Flatness |
±1.5dB |
| P1dB |
27dBm typ |
| Voltage |
5V～12.0V |
| Current |
300mA |
| Limit Voltage |
13V |
| Maximum Input Power |
+15dBm |
| Input reflection coefficient |
-9.5dB |
| Output reflection coefficient |
-9.5dB |
| Frequency Range |
400～470MHz |
Environmental Specifications
| Storage temperature |
-55℃～+100℃ |
| Temperature Range |
-20℃～+70℃ |
MECHANICAL CHARACTERISTICS
| Weight |
18g |
| Structural Dimension |
35mm×18.6mm×10.2mm |
