Typical application fields
- emergency communication
- picture transmission
- Linear pulse
- Multicarrier amplification
Description
| brand |
Tianhua Zhongwei |
| model |

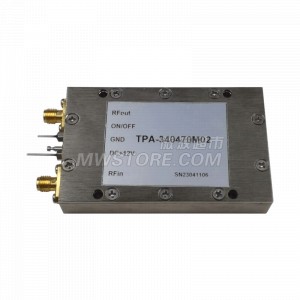

TPA-340470M02 |
| Connector 1 Series |
SMA |
| Connector 1 Gender |
Female |
| Connector 2 Series |
SMA |
| Connector 2 Gender |
Female |
| Power |
-- |
Electrical Specifications
| Gain |
15dB typ |
| Gain Flatness |
±1.0dB |
| P1dB |
37dBm typ |
| Voltage |
12V |
| Current |
700mA |
| Limit Voltage |
16V |
| Maximum input power |
+20dBm |
| ISWR |
2.0:1 |
| OSWR |
2.0:1 |
| Linear power |
33dBm |
| Switching voltage |
3.3V |
| Frequency Range |
340～470 MHz |
Environmental Specifications
| Storage temperature |
-40℃～100℃ |
| Temperature Range |
-40~70℃ |
MECHANICAL CHARACTERISTICS
| Weight |
116g |
MATERIALS

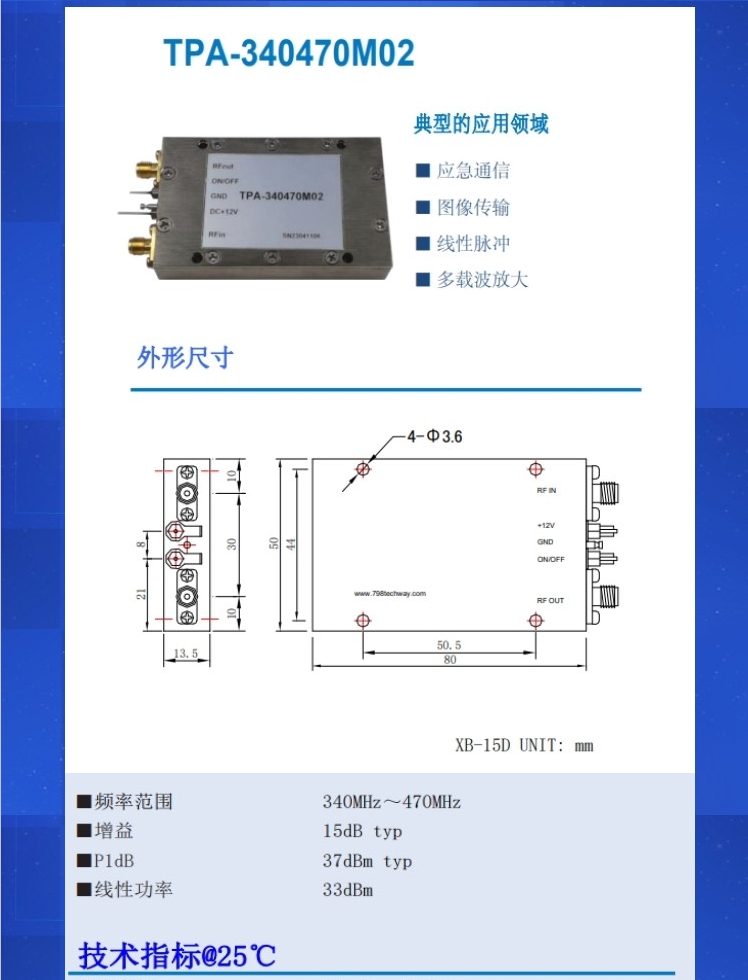

| Structural Dimension |
80mm×50mm×13.5mm |
