Typical application fields
- satellite communication
- weather radar
- Electronic station receiver
Description
| brand |
Tianhua Zhongwei |
| model |
TFU-77023GY |
Electrical Specifications
| P1dB |
30dBm typ |
| Voltage |
+5V |
| digit |
6Bit |
| Phase variation range |
360° |
| Inlet return loss |
-10dB |
| Export return loss |
-10dB |
| Mean square error |
+/-5.625deg type |
| electric current |
20mA |
| Maximum inlet power |
33dBm |
| Frequency Range |
2.75～2.95GHz |
| Insertion Loss |
-6.6dB |
Environmental Specifications
| working temperature |
-40~+70℃ |
| Storage temperature |
-55°C ～ 100°C |

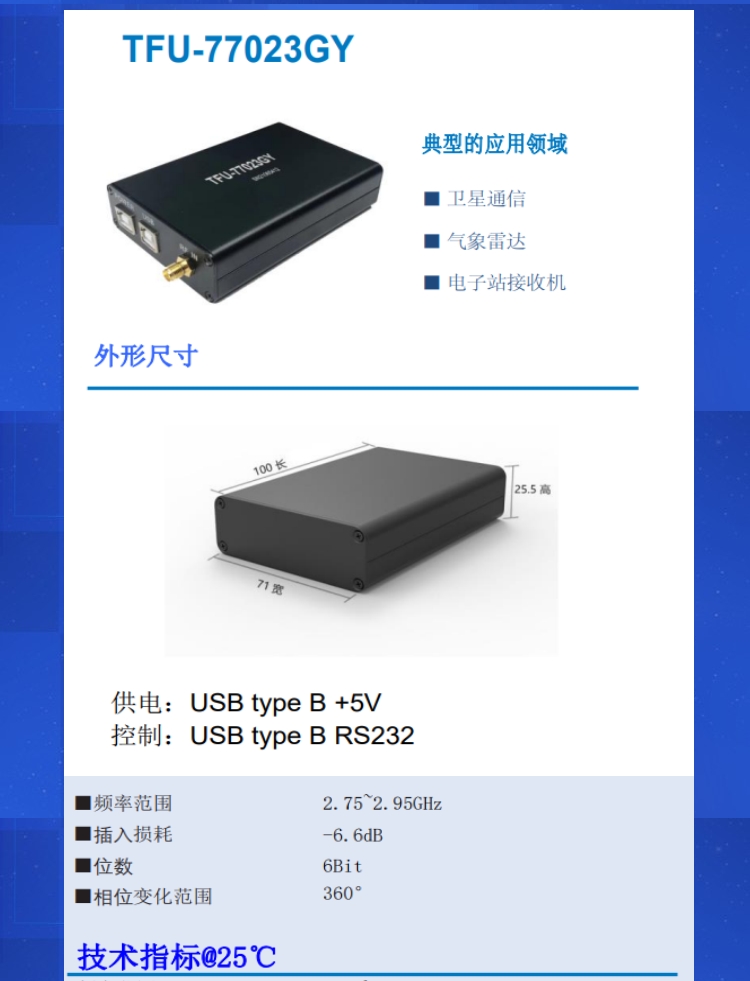

MECHANICAL CHARACTERISTICS
| outline dimension |
100×71×25.5(mm) |
