Typical application fields
- buffer amplifier
- For laboratory testing
Description
| brand |
Tianhua Zhongwei |
| model |

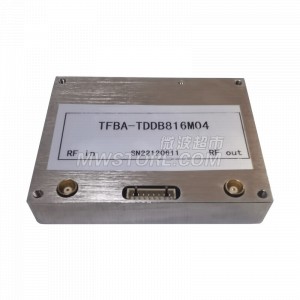

TFBA-TDDB816M04 |
| Connector 1 Series |
SMA |
| Connector 1 Gender |
Female |
| Connector 2 Series |
SMA |
| Connector 2 Gender |
Female |
| Power |
-- |
Electrical Specifications
| Noise Figure |
2.5dB |
| Gain Flatness |
≤1.0dB |
| Transmit gain |
46±1.0dB |
| switching time |
≤10us |
| Receiving limited output power |
0dBm |
| Receiving gain |
39±1.0dB |
| Stray suppression |
≤60dBc |
| Emission output power |
36±1.0dBm(@5dB back required) |
| I/OSWR |
1.5dB |
| Power supply/current |
DC +12V/1.5A |
| transmit maximum input |
-7dBm |
| Frequency Range |
816±5MHz |
Environmental Specifications
| Storage temperature |
-40℃～65℃ |
| 相对湿度 |
≤95%（Non-condensation） |
| Temperature Range |
-40℃～60℃ |
MECHANICAL CHARACTERISTICS
| Weight |
-- |
| Structural Dimension |
58mm×45mm×11mm |
| Power connector |
1.25mm8P straight needle holder |
