All Categories >Amplifiers/Mixers/Switches >Amplifiers >Power Amplifiers >功率放大器 Frequency Range20–520MHz gain 44dB min P1dB 42dBm min

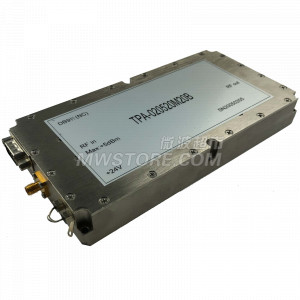

功率放大器 Frequency Range20–520MHz gain 44dB min P1dB 42dBm min

Model:TPA-020520M20B 193203ID:

Price List
$ US Dollar | ¥ 人民币

Qty 1 2 -10 11 -20 21 -50 51+
Price ¥3,800.00 ¥3,724.00 ¥3,610.00 ¥3,496.00 ¥3,420.00
Price: ¥3,800.00 /pcs
Qty
- +
Stock Status: In Stock
Add to Cart Inquiry Now


Description
gain 44dB min
Gain flatness ±2.5dB typ
OIP3 53dBm@输出为8W间隔250KHz的双音频
Input reflection coefficient -15dB typ
Limit voltage 30V
working voltage 24~28V
Working current 4.6A typ@在输出为Psat /26V
output power 42.5dBm typ
Connector 1 Series SMA
Connector 1 Gender
Connector 2 Series SMA
Connector 2 Gender
Power 5dBm
Electrical Specifications
Frequency Range 20–520MHz
Environmental Specifications
Storage temperature -55°C ~ 125°C
Temperature Range -40 ~ 55℃

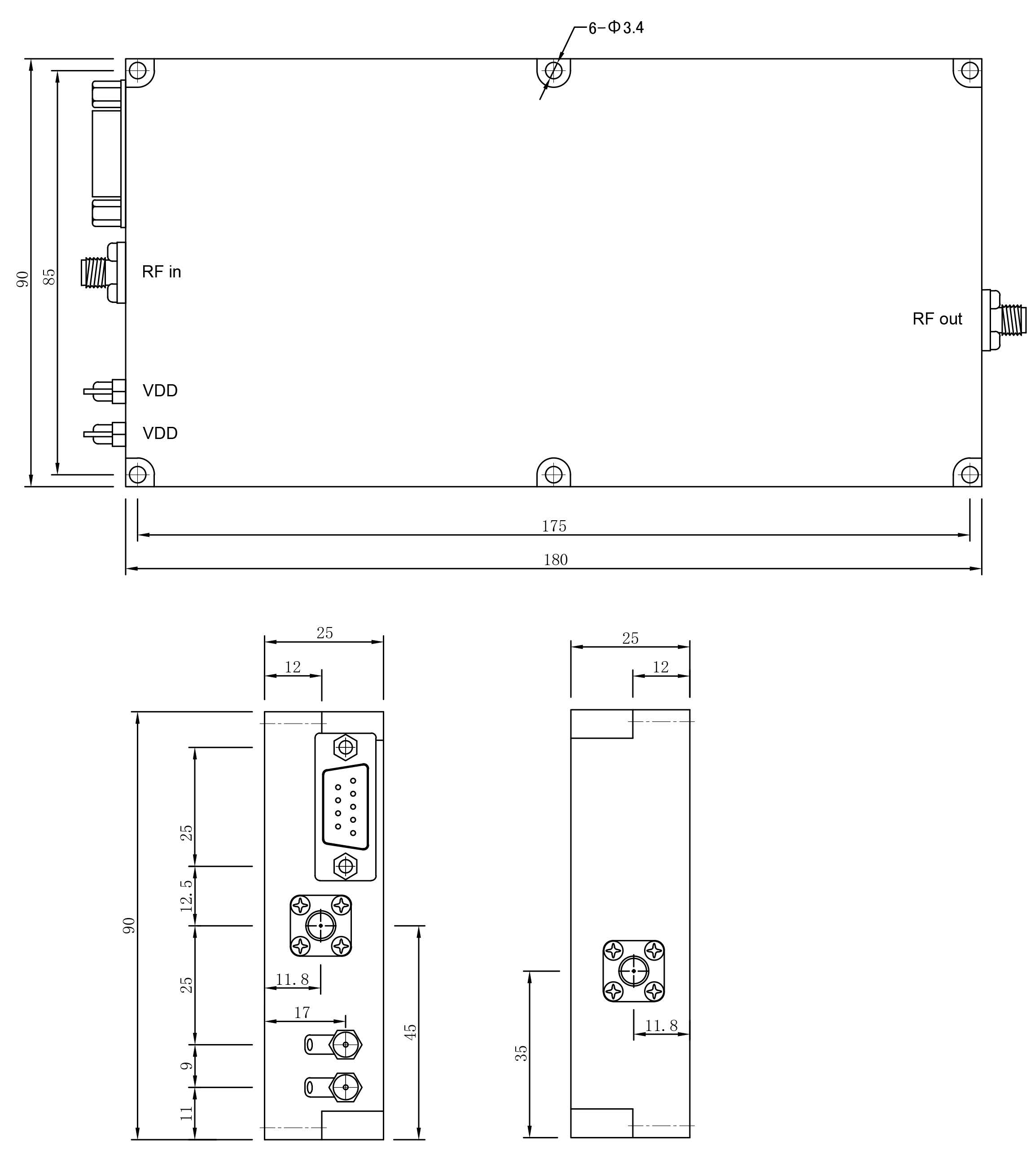

MECHANICAL CHARACTERISTICS
Weight
