Typical application fields
- Communication radar
- testing equipment
- Small signal amplifier
- For laboratory testing
Description
| brand |
Tianhua Zhongwei |
| model |

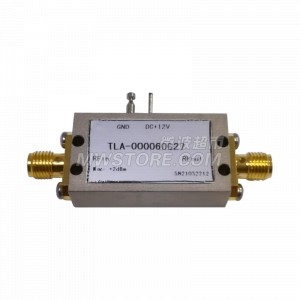

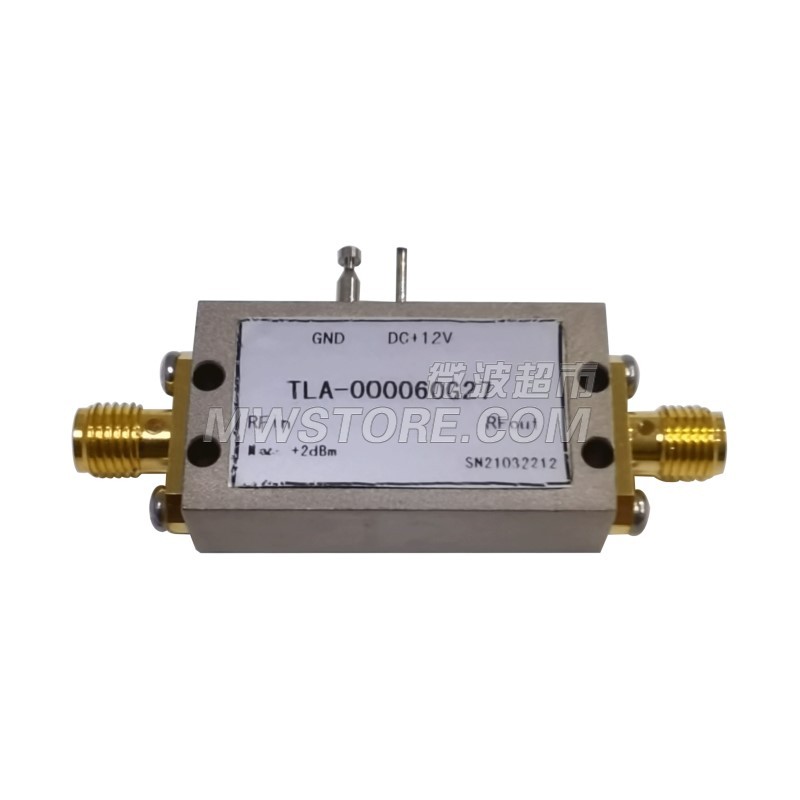

TLA-000060G27 |
Electrical Specifications
| Gain |
27dB typ |
| Noise Figure |
2.5dB |
| Gain Flatness |
±3.0dB typ |
| P1dB |
10dBm typ |
| Limit Voltage |
15V |
| Maximum inlet power |
+2dBm |
| ISWR |
2.0:1 |
| OSWR |
2.0:1 |
| Reverse isolation |
-45dB |
| working voltage |
12.0V |
| working current |
100mA |
| Frequency Range |
10kHz～6.0GHz |
Environmental Specifications
| working temperature |
-20°C ～70°C |
| Storage temperature |
-55°C ～ 100°C |
MECHANICAL CHARACTERISTICS
| Structural Dimension |
35mm×18.6mm×10.2mm |
| weight |
18g |
