| Qty | 1 | 2 -5 | 6 -20 | 21 -50 | 51+ |
|---|---|---|---|---|---|
| Price | ￥680.00 | ￥666.40 | ￥646.00 | ￥625.60 | ￥612.00 |

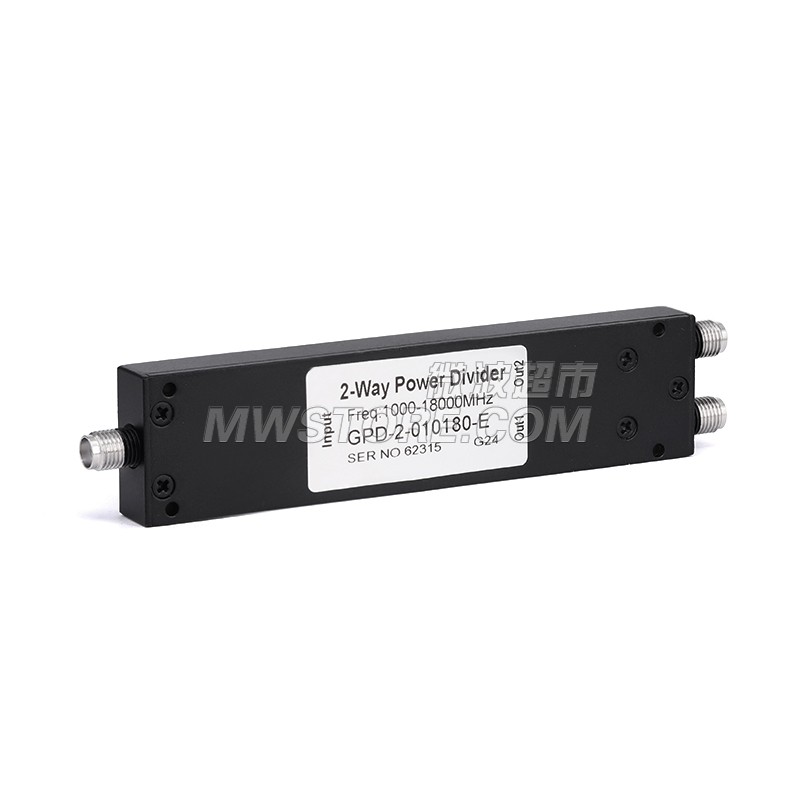

2 Way SMA Power Divider,1-18GHz,20W
| Conn.Type | SMA(F) |
|---|---|
| Impedance, Ohms | 50Ω |
| CW Power Max. | 20W |
| Frequency Range | 1 ~ 18G |
|---|---|
| Input VSWR Max. | 1.4 |
| Output VSWR Max. | 1.4 |
| Isolation Min. | 16dB |
| Amp.Bal. Max. | ±0.3dB |
| Phase Bal. Max. | ±3° |
| Insertion Loss | 1.4dB |
| Temperature Range | -45 ~ +85℃ |
|---|
| Outline Dim. | 99x24x10mm |
|---|
