| Qty | 1 | 2 -5 | 6 -20 | 21 -50 | 51+ |
|---|---|---|---|---|---|
| Price | ￥1,450.00 | ￥1,421.00 | ￥1,377.50 | ￥1,334.00 | ￥1,305.00 |

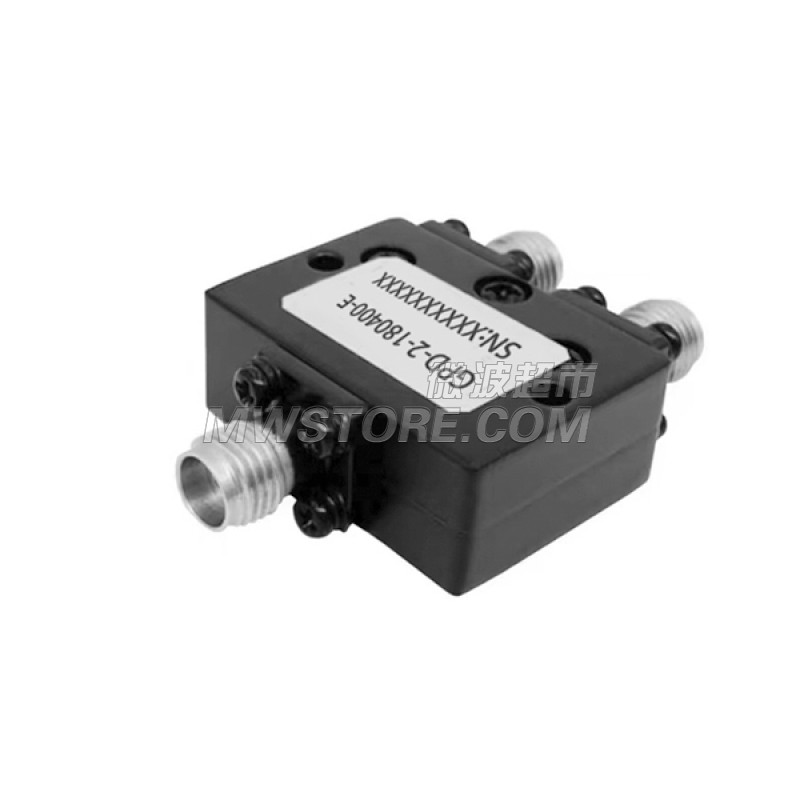

2 Way 2.92mm Power Divider,18-40GHz,20W, Economic
| Conn.Type | 2.92mm(F) |
|---|---|
| Impedance, Ohms | 50Ω |
| CW Power Max. | 20W |
| Frequency Range | 18 ~ 40G |
|---|---|
| Input VSWR Max. | 1.5 |
| Output VSWR Max. | 1.5 |
| Isolation Min. | Typ.20dB / min.17dB |
| Amp.Bal. Max. | ±0.4dB |
| Phase Bal. Max. | ±4° |
| Insertion Loss | 1dB |
| Temperature Range | -45 ~ +85℃ |
|---|
| Outline Dim. | 26x19x10mm |
|---|
