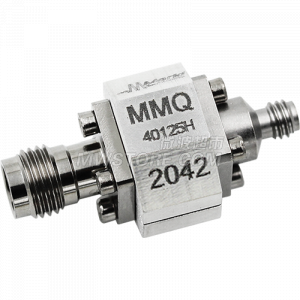

MMQ-40125H is a MMIC millimeter wave 4x multiplier fabricated
with GaAs Schottky diodes. MMQ-40125H operates over a 10
to 31.25 GHz input frequency range or a quadrupled output
frequency range of 40 to 125 GHz. Operation past 125GHz is
pending verification. Contact factory for information. MMQ40125H is available as a connectorized coaxial module using 1.0
mm connectors on the output. Wire bondable die are also
available.
Description
| Connector 1 Series |
1.0mm |
| Connector 1 Gender |
Female |
| Connector 2 Series |
1.0mm |
| Connector 2 Polarity |
Female |
Electrical Specifications
| Conversion Loss |
20dB |
Environmental Specifications
| Temperature Range |
-55℃~+100℃ |
