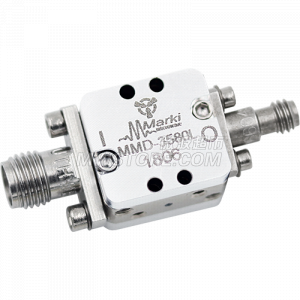

The MMD-3580L is a MMIC millimeter wave doubler fabricated
with GaAs Schottky diodes. This operates over a guaranteed
17.5 to 40 GHz input frequency range or a doubled output
frequency range of 35 to 80 GHz. The die version, MMD3580LCH, is capable of operating beyond 80GHz. Both the wire
bondable die and connectorized units are available. The MMD3567L is a bandlimited version of this doubler
Description
| Connector 1 Series |
1.0mm |
| Connector 1 Gender |
Female |
| Connector 2 Series |
1.0mm |
| Connector 2 Gender |
Female |
Electrical Specifications
| Conversion Loss |
11dB |
Environmental Specifications
| Temperature Range |
-55℃~+100℃ |
