2X Multiplier, Input 10 to 30 GHz,Output 20 to 60 GHz,11dB Typical Conversion Loss

Model:MMD-2060LU 192863ID:

Price List
$ US Dollar | ¥ 人民币

Qty 1-4 5+
Price ¥8,725.86 ¥8,289.57
Price: ¥8,725.86 /pcs
Qty
- +
Leadtime: 16-21 days
Add to Cart Inquiry Now

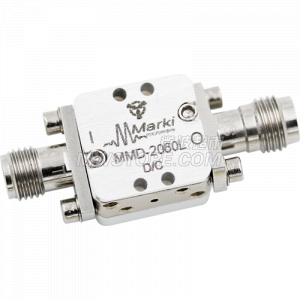

The MMD-2060L is a MMIC millimeter wave doubler fabricated with GaAs Schottky diodes. This operates over a guaranteed 10 to 30 GHz input frequency range or a doubled output frequency range of 20 to 60 GHz. It features excellent conversion loss, superior isolations and harmonic suppressions across a broad bandwidth. Both the wire bondable die and connectorized units are available.

Description
Connector 1 Series 1.85mm
Connector 1 Gender Female
Connector 2 Series 1.85mm
Connector 2 Gender Female
Electrical Specifications
Conversion Loss 11dB
Environmental Specifications
Temperature Range -55℃~+100℃
