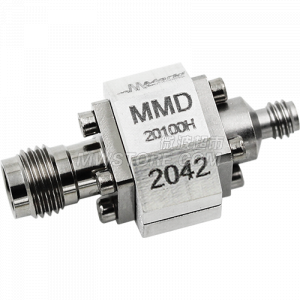

MMD-20100H is a MMIC millimeter wave 2x multiplier
fabricated with GaAs Schottky diodes. MMD-20100H operates
over a 10 to 50 GHz input frequency range or a doubled output
frequency range of 20 to 100 GHz. MMD-20100H is available
as a connectorized coaxial module using 1.0 mm connectors on
the output. Wire bondable die are also available.
Description
| Connector 1 Series |
1.0mm |
| Connector 1 Gender |
Female |
| Connector 2 Series |
1.0mm |
| Connector 3 Gender |
Female |
Electrical Specifications
| Conversion Loss |
10dB |
Environmental Specifications
| Temperature Range |
-55℃~+100℃ |
