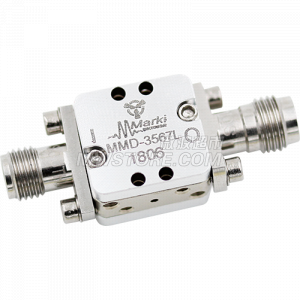

The MMD-3567L is a MMIC millimeter wave doubler fabricated
with GaAs Schottky diodes. This operates over a guaranteed
17.5 to 33.5 GHz input frequency range or a doubled output
frequency range of 35 to 67 GHz. This doubler is a bandlimited
version of the MMD-3580L. The sister die version, MMD3580LCH, is capable of operating beyond 80GHz. Both the wire
bondable die and connectorized units are available.
Description
| Connector 1 Series |
1.85mm |
| Connector 1 Gender |
Female |
| Connector 2 Series |
1.85mm |
| Connector 2 Gender |
Female |
Electrical Specifications
| Conversion Loss |
11dB |
Environmental Specifications
| Temperature Range |
-55℃~+100℃ |
