| Qty | 1 | 2 -5 | 6 -20 | 21 -50 | 51+ |
|---|---|---|---|---|---|
| Price | ￥720.00 | ￥705.60 | ￥684.00 | ￥662.40 | ￥648.00 |

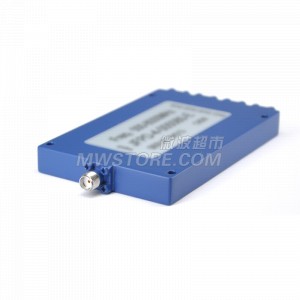

4 Way SMA Power Divider,0.5-8GHz,30W
| Conn.Type | SMA(F) |
|---|---|
| Impedance, Ohms | 50Ω |
| CW Power Max. | 30W |
| Peak Power Max. | 3kW |
| Frequency Range | 0.5 ~ 8G |
|---|---|
| Input VSWR Max. | 1.3 |
| Output VSWR Max. | 1.3 |
| Isolation Min. | 18dB |
| Amp.Bal. Max. | ±0.3dB |
| Phase Bal. Max. | ±4° |
| Insertion Loss | 2.0dB |
| Temperature Range | -45 ~ +85℃ |
|---|
