| Qty | 1 | 2 -5 | 6 -20 | 21 -50 | 51+ |
|---|---|---|---|---|---|
| Price | ￥--- | ￥--- | ￥--- | ￥--- | ￥--- |

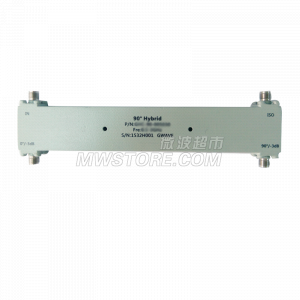

SMA 90 Deg. Hybrid Coupler,0.3-6GHz,20W
| Conn.Type | SMA(F) |
|---|---|
| Impedance, Ohms | 50Ω |
| CW Power Max. | 20W |
| Peak Power Max. | 3kW |
| Frequency Range | 0.3~ 6G |
|---|---|
| Isolation Min. | 16dB |
| Amp.Bal. Max. | ±1.1dB |
| Phase Bal. Max. | ±7° |
| VSWR | 1.5 |
| Insertion Loss | 2.2dB |
| Temperature Range | -55 ~ +105℃ |
|---|
| Outline Dim. | 280x35x14mm |
|---|
