| Qty | 1-5 | 6 -10 | 11 -20 | 21 -50 | 51+ |
|---|---|---|---|---|---|
| Price | ￥5,600.00 | ￥5,488.00 | ￥5,320.00 | ￥5,152.00 | ￥5,040.00 |

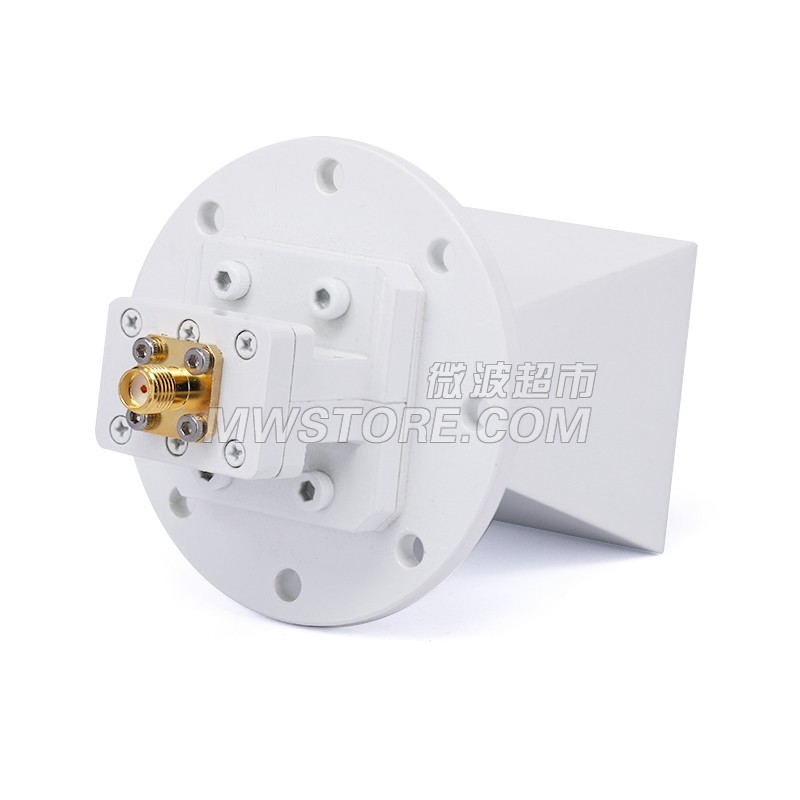

Horn Antenna Operating From 6 GHz to 18 GHz With a Nominal 14 dBi Gain ,SMA Female Input Connector
| Impedance, Ohms | 50 Ω |
|---|---|
| Connector 1 Series | SMA |
| Connector 1 Gender | Female |
| Connector 1 Polarity | Standard |
| Connector 1 Body Material | Al |
| Gain | 14 dBi |
|---|---|
| Beamwidth(E×H) | 35.3°×35.3°@13GHz |
| VSWR | ≤2.0 |
| Temperature Range | -55~+165℃ |
|---|
