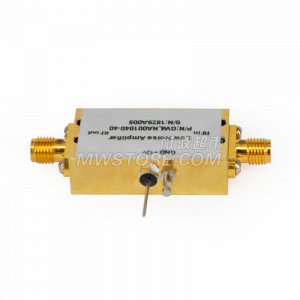

Low Noise Amplifier,0.02-3GHz,2.5dB NF ,30dB Gain

Model:GWLNA001030-30-17 190525ID:

Price List
$ US Dollar | ¥ 人民币

Qty 1 2 -5 6 -10 11 -20 21+
Price ¥2,500.00 ¥2,450.00 ¥2,375.00 ¥2,300.00 ¥2,250.00
Price: ¥2,500.00 /pcs
Qty
- +
Leadtime: 16-21 days
Add to Cart Inquiry Now

Low  Noise  Amplifier,0.02-3GHz,2.5dB NF ,30dB Gain

Description
Connector 1 Series SMA
Connector 1 Gender Female
Connector 2 Series SMA
Connector 2 Gender Female
Electrical Specifications
Gain 30dB
Noise Figure 2.5dB
Gain Flatness ±3.0dB
Output Power at 1dB Compression Point 17dBm
Operating DC Voltage +5V
Input VSWR Max. 1.5
Output VSWR Max. 1.5
Frequency Range 0.02-3GHz
Environmental Specifications
Temperature Range -20~70℃
