| Qty | 1 | 2 -5 | 6 -10 | 11 -20 | 21+ |
|---|---|---|---|---|---|
| Price | ￥4,560.00 | ￥4,468.80 | ￥4,332.00 | ￥4,195.20 | ￥4,104.00 |

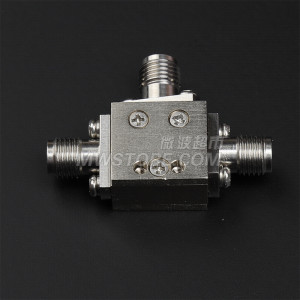

This is a high linear passive double balanced mixer with high performance gaas mixer.It has low differential loss, high isolation and broadband characteristics, interface SMA connection.
| Input Two-Tone Third Order Intercept Point | +27dBm |
|---|---|
| Input 1 dB Compression | +14dBm |
| Conversion Loss | 8.5dB |
| Isolation Min. | See Plots |
| Frequency Range | 6-26 GHz |
| Temperature Range | -55℃~+100℃ |
|---|
