| Qty | 1 | 2 -5 | 6 -10 | 11 -20 | 21+ |
|---|---|---|---|---|---|
| Price | ￥4,800.00 | ￥4,704.00 | ￥4,560.00 | ￥4,416.00 | ￥4,320.00 |

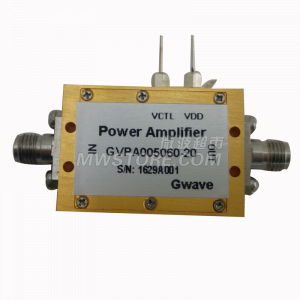

Power Amplifier,0.5-6GHz,-5-22dB Gain ，18dBm Output Power
| Connector 1 Series | SMA |
|---|---|
| Connector 1 Gender | Female |
| Connector 2 Series | SMA |
| Connector 2 Gender | Female |
| Output Return Loss | 10dB |
|---|---|
| Input Return Loss | 10dB |
| Gain | -5-22dB |
| Gain Flatness | ±3dB |
| Output Power at 1dB Compression Point | 18dBm |
| Operating DC Voltage | 5V |
| Frequency Range | 0.5 ~ 6GHz |
| Temperature Range | -20~70℃ |
|---|
