| Qty | 1-5 | 6 -20 | 21 -50 | 51 -100 | 101+ |
|---|---|---|---|---|---|
| Price | ￥3,650.00 | ￥3,577.00 | ￥3,467.50 | ￥3,358.00 | ￥3,285.00 |

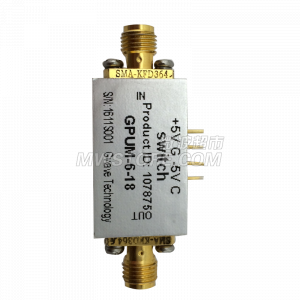

6~18GHz , ±5 Vdc, SPST PIN Switch
| Conn.Type | SMA(F) |
|---|---|
| Impedance, Ohms | 50 Ω |
| Swicthing Time | <10ns |
| Operating DC Voltage | ±5V |
|---|---|
| Isolation Min. | >70dB |
| Frequency Range | 6~18GHz |
| VSWR | <1.6 |
| Insertion Loss | <2.0dB |
| Temperature Range | -30 ~ 65℃ |
|---|
