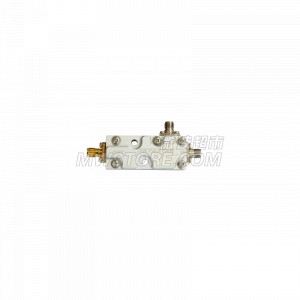

3.5mm 16dB Directional Coupler,10M-20GHz,1W
| Conn.Type | 3.5mm(F) |
|---|---|
| Impedance, Ohms | 50Ω |
| CW Power Max. | 1W |
| Frequency Range | 10M ~ 20G |
|---|---|
| Nominal Coupling | 16±1dB |
| Main VSWR Max. | 1.45 |
| Coupling VSWR Max. | 1.45 |
| Directivity Min. | 15dB |
| Insertion Loss | 3.5dB |
| Temperature Range | -20 ~ +55℃ |
|---|
