| Qty | 1-5 | 6 -20 | 21 -50 | 51 -100 | 101+ |
|---|---|---|---|---|---|
| Price | ￥5,031.00 | ￥4,930.38 | ￥4,779.45 | ￥4,628.52 | ￥4,527.90 |

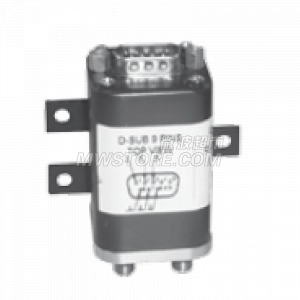

DC~18GHz ,12 Vdc,FailSafe DPDT Switch
| Conn.Type | SMA(F) |
|---|---|
| Life | 2 million cycles |
| Operating mode | Failsafe |
| Impedance, Ohms | 50 Ω |
| Operating DC Voltage | 12V |
|---|---|
| Isolation Min. | >60dB（Refer To Datasheet） |
| Frequency Range | DC~18GHz |
| VSWR | <1.5(Refer To Datasheet) |
| Insertion Loss | <0.5dB(Refer To Datasheet) |
| Temperature Range | -25 ~ +70℃ |
|---|
