| Qty | 1 | 2 -5 | 6 -10 | 11 -20 | 21+ |
|---|---|---|---|---|---|
| Price | ￥800.00 | ￥784.00 | ￥760.00 | ￥736.00 | ￥720.00 |

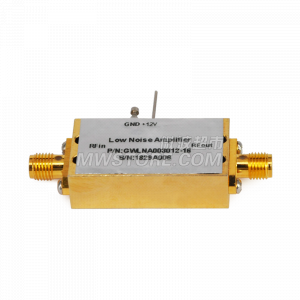

Low Noise Amplifier,0.3-1.2GHz,0.8dB NF ,16dB Gain
| Connector 1 Series | SMA |
|---|---|
| Connector 1 Gender | Female |
| Connector 2 Series | SMA |
| Connector 2 Gender | Female |
| Gain | 16dB |
|---|---|
| Operating DC Voltage | 12V |
| Output Return Loss | 15dB |
| Input Return Loss | 12dB |
| Output Power at 1dB Compression Point | 12dBm |
| Gain Flatness | ±1.5dB |
| Noise Figure | 0.8dB |
| Frequency Range | 0.3-1.2GHz |
| Temperature Range | -20~70℃ |
|---|
