| Qty | 1-10 | 11 -50 | 51 -200 | 201 -500 | 501+ |
|---|---|---|---|---|---|
| Price | ￥68.00 | ￥66.64 | ￥64.60 | ￥62.56 | ￥61.20 |

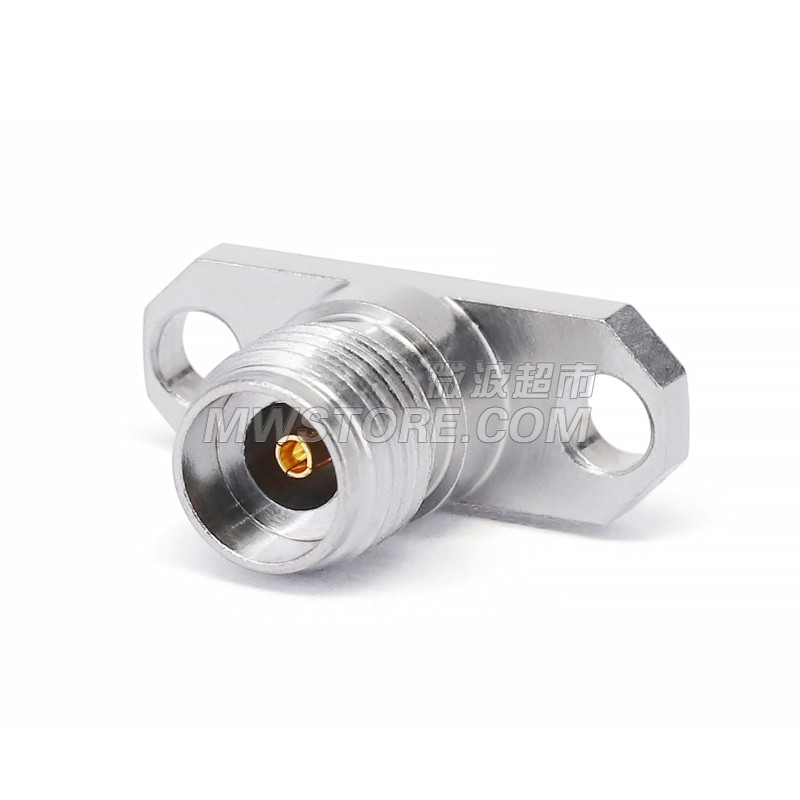

2.92mm Female Field Replaceable Flange Mount Connector, 12.2mm 2 Hole Flange, DC-40GHz， Accepts Ø0.51mm Pin，Product size information as follow：
Application：
| Connector 1 Series | 2.92mm |
|---|---|
| Connector 1 Gender | Female |
| Connector 1 Impedance | 50 Ohms |
| Connector 1 Polarity | Standard |
| Connector 1 Body Material | Stainless Steel |
| Interface Type | For PCB |
| Mount Method | 2 Hole Flange |
| Body Style | Straight |
| Frequency Range | DC-40G |
|---|
| Temperature Range | -55~+165℃ |
|---|
