All Categories >RF Connector >2.4mm >Field Replaceable Connector >2.4mm Female Field Replaceable Connector, 2 Hole Flange, Hole Spacing 12.2mm,DC-50GHz, Accepts Ø0.30mm Pin

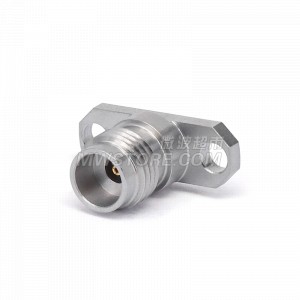

2.4mm Female Field Replaceable Connector, 2 Hole Flange, Hole Spacing 12.2mm,DC-50GHz, Accepts Ø0.30mm Pin

Model:2.4-KFD0430 101390ID:

Price List
$ US Dollar | ¥ 人民币

Qty 1-10 11 -50 51 -200 201 -500 501+
Price ¥140.00 ¥137.20 ¥133.00 ¥128.80 ¥126.00
Price: ¥140.00 /pcs
Qty
- +
Leadtime: 4-7 days
Add to Cart Inquiry Now

2.4mm Female Field Replaceable Connector, 2 Hole Flange, Hole Spacing 12.2mm,DC-50GHz, Accepts Ø0.30mm Pin,Product size information as follow:

Application:



Description
Connector 1 Series 2.4mm
Connector 1 Gender Female
Connector 1 Impedance 50 Ohms
Connector 1 Polarity Standard
Connector 1 Body Material Stainless Steel
Interface Type For PCB
Mount Method 2 Hole Flange
Body Style Straight
Electrical Specifications
Frequency Range DC-50G
VSWR ≤1.15
Environmental Specifications
Temperature Range -55~+165℃
