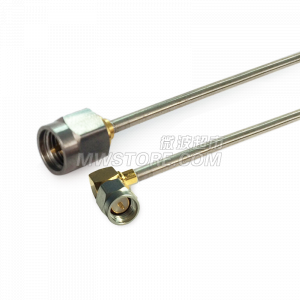

SMA Male to SMA Male Right Angle Cable Using UT-085-SS Coax,DC-6GHz
Description
| Connector 1 Series |
SMA |
| Connector 1 Gender |
Male |
| Connector 1 Impedance |
50 Ohms |
| Connector 1 Polarity |
Standard |
| Connector 1 Body Style |
Straight |
| Connector 1 Body Material |
Stainless Steel |
| Connector 1 Mount Method |
None |
| Connector 2 Series |
SMA |
| Connector 2 Gender |
Male |
| Connector 2 Impedance |
50 Ohms |
| Connector 2 Polarity |
Standard |
| Connector 2 Body Style |
Right Angle |
| Connector 2 Body Material |
Stainless Steel |
| Connector 2 Mount Method |
None |
| For Cable |
UT-085-SS |
| Arm Serious |
None |
Electrical Specifications
| Frequency Range |
DC-6G |
| VSWR |
1.3 |
Environmental Specifications
| Temperature Range |
-40~+165℃ |
MECHANICAL CHARACTERISTICS
| Outer Diameter |
2.2mm |
| Minimum Bend Radius |
3.18mm |
