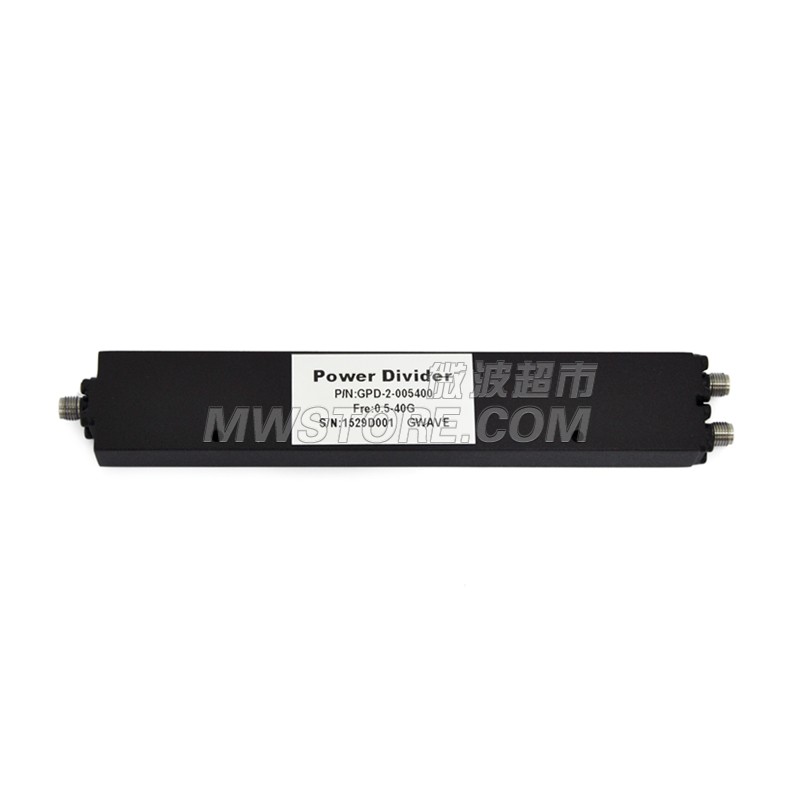

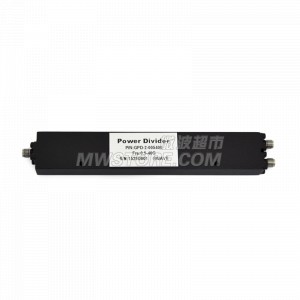

2 Way 2.92mm Power Divider,0.4-40GHz,20W
| Peak Power Max. | 3kW |
|---|---|
| CW Power Max. | 20W |
| Impedance, Ohms | 50Ω |
| Conn.Type | 2.92mm(F) |
| Output VSWR Max. | 2.0 |
|---|---|
| Input VSWR Max. | 2.0 |
| Frequency Range | 0.4 ~ 40G |
| Phase Bal. Max. | ±7° |
| Amp.Bal. Max. | ±0.5 dB |
| Isolation Min. | 13 dB |
| Insertion Loss | 3.6 dB |
| Temperature Range | -35 ~ +105℃ |
|---|
| Outline Dim. | 149.2x26.4x12.7mm |
|---|
