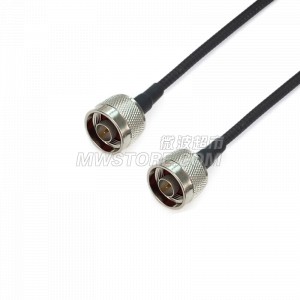

N Male to N Male Cable Using Super Flexible Corrugated 3/8"S,DC-3GHz
Description
| Connector 1 Series |
N |
| Connector 1 Gender |
Male |
| Connector 1 Impedance |
50 Ohms |
| Connector 1 Polarity |
Standard |
| Connector 1 Body Style |
Straight |
| Connector 1 Body Material |
Brass Nickel Plated |
| Connector 1 Mount Method |
None |
| Connector 2 Series |
N |
| Connector 2 Gender |
Male |
| Connector 2 Impedance |
50 Ohms |
| Connector 2 Polarity |
Standard |
| Connector 2 Body Style |
Straight |
| Connector 2 Body Material |
Brass Nickel Plated |
| Connector 2 Mount Method |
None |
| For Cable |
3/8“S |
| Arm Serious |
None |
| Mount Method |
None |
| Body Style |
Straight |
Electrical Specifications
| Frequency Range |
DC-3G |
| VSWR |
≤1.25 |
| Insertion Loss |
See datasheet |
Environmental Specifications
| Temperature Range |
-40~+85℃ |
MECHANICAL CHARACTERISTICS
| Armor Outer Diameter |
10.2mm |
| Minimum Bend Radius |
12.5mm |
