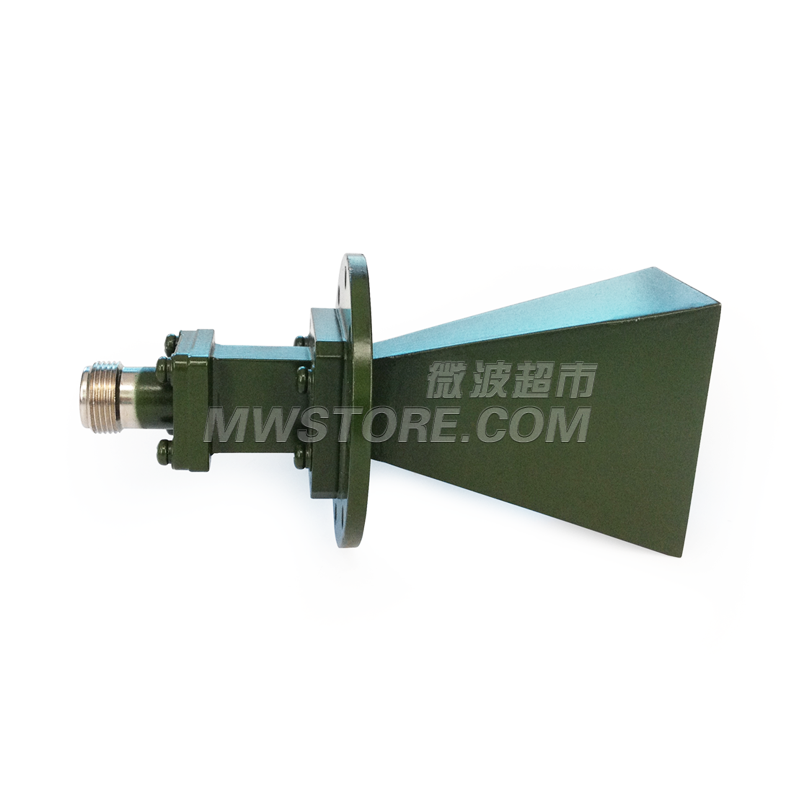

Horn Antenna Operating From 8 GHz to 18 GHz With a Nominal 14 dBi Gain ,N Female Input Connector

Model:GHA080180-NF-14 101228ID:

Price List
$ US Dollar | ¥ 人民币

Qty 1-5 6 -10 11 -20 21 -50 51+
Price ¥--- ¥--- ¥--- ¥--- ¥---
Price: ¥---
Qty
- +
Leadtime: 46-60 days
Add to Cart Inquiry Now

Horn Antenna Operating From 8 GHz to 18 GHz With a Nominal 14 dBi Gain ,N Female Input Connector

Description
Impedance, Ohms 50 Ω
Connector 1 Series N
Connector 1 Gender Female
Connector 1 Polarity Standard
Connector 1 Body Material Al
Electrical Specifications
Beamwidth(E×H) 35.3°×35.3°@13GHz
Gain 14 dBi
VSWR ≤2.0
Environmental Specifications
Temperature Range -55~+165℃
