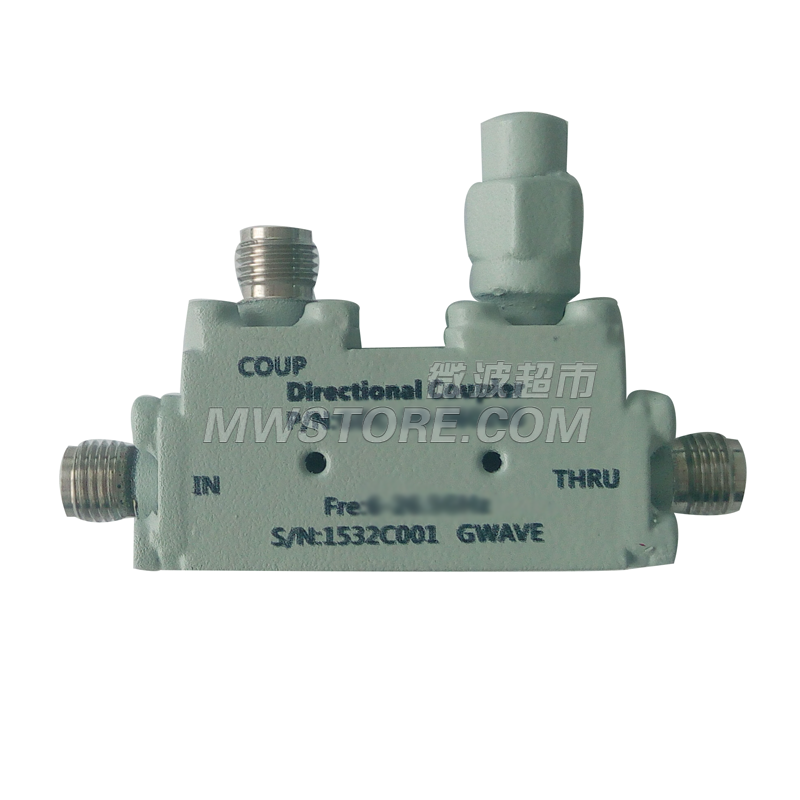

2.92mm 20dB Directional Coupler,6-40GHz,20W

Model:GDC-20-060400 100839ID:

Price List
$ US Dollar | ¥ 人民币

Qty 1 2 -5 6 -20 21 -50 51+
Price ¥--- ¥--- ¥--- ¥--- ¥---
Price: ¥---
Qty
- +
Leadtime: 16-21 days
Add to Cart Inquiry Now

2.92mm 20dB Directional Coupler,6-40GHz,20W

Description
Peak Power Max. 3kW
CW Power Max. 20W
Impedance, Ohms 50Ω
Conn.Type 2.92mm(F)
Electrical Specifications
Main VSWR Max. 1.6
Nominal Coupling 20±0.7dB
Frequency Range 6 ~ 40G
Frequency Flatness Max. ±0.8dB
Directivity Min. 12dB
Coupling VSWR Max. 1.6
Insertion Loss 1.3dB
Environmental Specifications
Temperature Range -35 ~ +105℃
MECHANICAL CHARACTERISTICS
Outline Dim. 31.8x12.7x15.8mm
