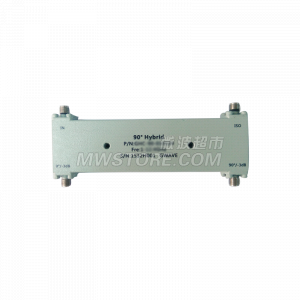

SMA 90 Deg. Hybrid Coupler,1-18GHz,20W
| Peak Power Max. | 3kW |
|---|---|
| CW Power Max. | 20W |
| Impedance, Ohms | 50Ω |
| Conn.Type | SMA(F) |
| Frequency Range | 1 ~ 18G |
|---|---|
| Phase Bal. Max. | ±8° |
| Amp.Bal. Max. | ±0.8dB |
| Isolation Min. | 17dB |
| VSWR | 1.4 |
| Insertion Loss | 2dB |
| Temperature Range | -35 ~ +105℃ |
|---|
| Outline Dim. | 117.6x31.8x12.7mm |
|---|
