| Qty | 1 | 2 -5 | 6 -10 | 11 -20 | 21+ |
|---|---|---|---|---|---|
| Price | ￥35,000.00 | ￥34,300.00 | ￥33,250.00 | ￥32,200.00 | ￥31,500.00 |

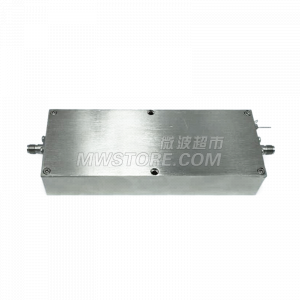

Low Noise Amplifier DC~50GHz ，30dB Gain , 5dB Gain Flatness, 6.5dB NF
| Connector 1 Series | 2.92mm |
|---|---|
| Connector 1 Gender | Female |
| Connector 2 Series | 2.92mm |
| Connector 2 Gender | Female |
| Gain | 30dB |
|---|---|
| Input Return Loss | 10dB |
| Noise Figure | 6.5dB |
| Gain Flatness | 5dB |
| Operating DC Voltage | 7V |
| Output Return Loss | 10dB |
| Frequency Range | DC ~ 50GHz |
| Temperature Range | -20 ~ 85 |
|---|
