| Qty | 1 | 2 -5 | 6 -20 | 21 -50 | 51+ |
|---|---|---|---|---|---|
| Price | ￥480.00 | ￥470.40 | ￥456.00 | ￥441.60 | ￥432.00 |

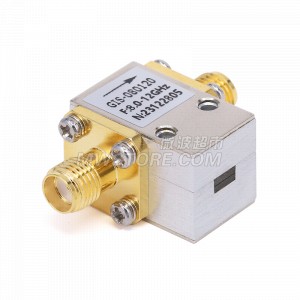

SMA Isolator,8-12GHz
| Conn.Type | SMA(F) |
|---|---|
| Impedance, Ohms | 50Ω |
| CW Power Max. | 2W |
| Frequency Range | 8 ~ 12G |
|---|---|
| Input VSWR Max. | 1.3 |
| Isolation Min. | 20dB |
| Insertion Loss | 0.5dB |
| Temperature Range | -25 ~ +55℃ |
|---|
| Outline Dim. | 13x19x12.7mm |
|---|
