| Qty | 1 | 2 -5 | 6 -20 | 21 -50 | 51+ |
|---|---|---|---|---|---|
| Price | ￥6,500.00 | ￥6,370.00 | ￥6,175.00 | ￥5,980.00 | ￥5,850.00 |

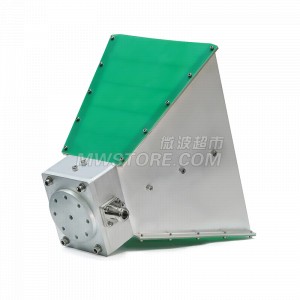

Ultra-Wide Band Horn Antenna Operating From 1 GHz to 18 GHz With a Nominal 10 dBi Gain N Female Input Connector；
Customization for special specification and requirement is available.
| Impedance, Ohms | 50 Ω |
|---|---|
| Connector 1 Series | N |
| Connector 1 Gender | Female |
| Connector 1 Polarity | Standard |
| Connector 1 Body Style | Straight |
| Connector 1 Body Material | Al |
| Connector 1 Mount Method | None |
| Gain | 12 dBi |
|---|---|
| Beamwidth(E×H) | 47°×33° |
| Frequency Range | 1-18G |
| VSWR | ≤2.50 |
| Temperature Range | -55~+165℃ |
|---|
