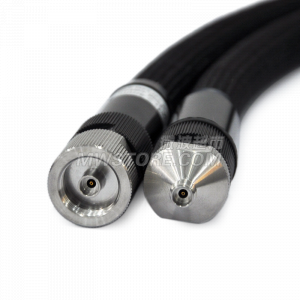

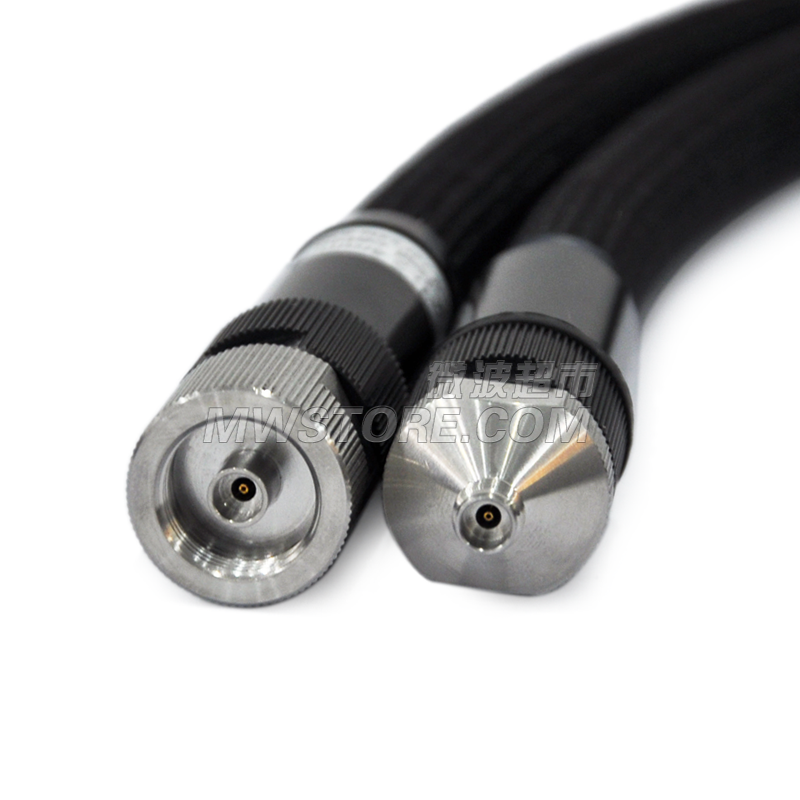

2.4mm Female to 2.4mm Female Cable With Multilayer Armor,DC-50GHz
Description
| Connector 1 Series |
NMD2.4mm |
| Connector 1 Gender |
Female |
| Connector 1 Impedance |
50 Ohms |
| Connector 2 Series |
2.4mm |
| Connector 2 Gender |
Female |
| Connector 2 Impedance |
50 Ohms |
Electrical Specifications
| Amp.Bal. Max. |
±0.05dB |
| Phase Bal. Max. |
≤±3.5° |
| Frequency Range |
DC-50G |
| VSWR |
≤1.35 |
| Insertion Loss |
≤3.2dB |
Environmental Specifications
| Temperature Range |
0°C to +40°C |
MECHANICAL CHARACTERISTICS
| Minimum Bend Radius |
50mm |
| Armor Outer Diameter |
15.2mm |
