All Categories >Bare wire/Cable assembly >Precision Test Cables >GT205A Serious Precision Test Cable Assemblies >3.5mm Female to 3.5mm Female Cable Using 205A Series Coax With Stainless Steel Interlocked Hose,DC-26.5GHz

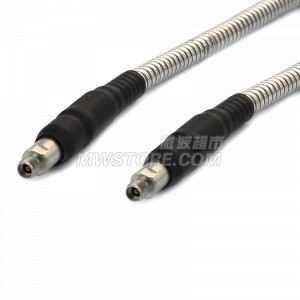

3.5mm Female to 3.5mm Female Cable Using 205A Series Coax With Stainless Steel Interlocked Hose,DC-26.5GHz

Model:GAA3-35F35F-500A2 100282ID:

Price List
$ US Dollar | ¥ 人民币

Qty 1 2 -5 6 -10 11 -20 21+
Price ¥633.00 ¥620.34 ¥601.35 ¥582.36 ¥569.70

Cable Length

Standard length
500600100015002000 mm
Custom length
Price: ¥633.00 /pcs
Qty
- +
Leadtime: 1-3 Days
Add to Cart Inquiry Now

3.5mm Female to 3.5mm Female Cable Using 205A Series Coax With Stainless Steel Interlocked Hose,DC-26.5GHz

Description
Connector 1 Series 3.5mm
Connector 1 Gender Female
Connector 1 Impedance 50 Ohms
Connector 1 Polarity Standard
Connector 1 Body Style Straight
Connector 1 Body Material Stainless Steel
Connector 1 Mount Method None
Connector 2 Series 3.5mm
Connector 2 Gender Female
Connector 2 Impedance 50 Ohms
Connector 2 Polarity Standard
Connector 2 Body Style Straight
Connector 2 Body Material Stainless Steel
Connector 2 Mount Method None
For Cable GT205A
Arm Serious Stainless Steel Interlocked Hose(A2)
Electrical Specifications
Frequency Range DC-26.5G
VSWR ≤1.35
Insertion Loss See datasheet
Environmental Specifications
Temperature Range -40~+165℃
