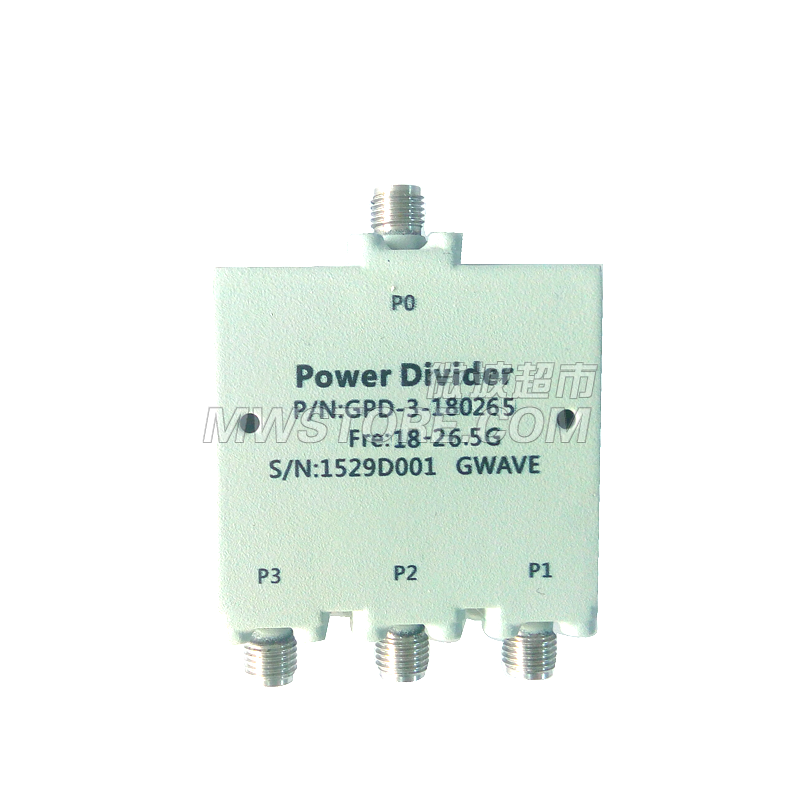

3 Way SMA Power Divider,18-26.5GHz,20W

Model:GPD-3-180265 100241ID:

Price List
$ US Dollar | ¥ 人民币

Qty 1 2 -5 6 -20 21 -50 51+
Price ¥--- ¥--- ¥--- ¥--- ¥---
Price: ¥---
Qty
- +
Leadtime: 8-15 days
Add to Cart Inquiry Now

3 Way SMA Power Divider,18-26.5GHz,20W

Description
Conn.Type SMA(F)
Impedance, Ohms 50Ω
CW Power Max. 20W
Peak Power Max. 3kW
Electrical Specifications
Frequency Range 18 ~ 26.5G
Input VSWR Max. 1.6
Output VSWR Max. 1.6
Isolation Min. 18dB
Amp.Bal. Max. ±0.5dB
Phase Bal. Max. ±5°
Insertion Loss 1.4dB
Environmental Specifications
Temperature Range -35 ~ +105℃
MECHANICAL CHARACTERISTICS
Outline Dim. 38.1x43.2x12.7mm
