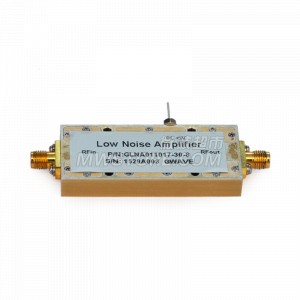

Low Noise Amplifier 1.1-1.7GHz ,2dB NF, 30dB Gain

Model:GHLNA011017-30 100165ID:

Price List
$ US Dollar | ¥ 人民币

Qty 1 2 -5 6 -10 11 -20 21+
Price ¥2,800.00 ¥2,744.00 ¥2,660.00 ¥2,576.00 ¥2,520.00
Price: ¥2,800.00 /pcs
Qty
- +
Leadtime: 16-21 days
Add to Cart Inquiry Now

Low  Noise  Amplifier    1.1-1.7GHz ,2dB NF, 30dB Gain

Description
Connector 1 Series SMA
Connector 1 Gender Female
Connector 2 Series SMA
Connector 2 Gender Female
Power 64mw
Electrical Specifications
Gain 30dB
Noise Figure 1.9dB
Gain Flatness 3dB
Output Power at 1dB Compression Point 8dBm
Input Return Loss 12dB
Output Return Loss 11dB
Operating DC Voltage 5V
Frequency Range 1.1~1.7GHz
Environmental Specifications
Temperature Range -40~+85℃
