| Qty | 1-4 | 5 -9 | 10 -19 | 20 -29 | 30+ |
|---|---|---|---|---|---|
| Price | ￥5,500.00 | ￥5,390.00 | ￥5,225.00 | ￥5,060.00 | ￥4,950.00 |

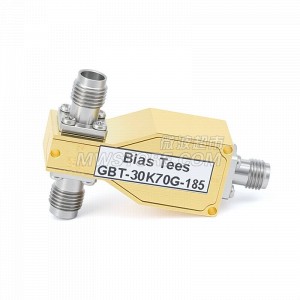

30KHz-70GHz，1.85mm Bias Tee, Rated To 500mA And 25Volts DC，1W
| Connector 1 Series | 1.85mm |
|---|---|
| Connector 1 Gender | Female |
| Connector 2 Series | SMA |
| Connector 2 Gender | Female |
| Power | 1W |
| Maximum rated voltage | 25V |
|---|---|
| maximum rated current | 500mA |
| Frequency Range | 30KHz~70GHz |
| VSWR | <1.60 |
| Insertion Loss | 3.5dB |
| Temperature Range | -20 ~ +50℃ |
|---|
