Typical application fields
- The promotion of high power linear power amplifier
- VHF/UHF signal transmission
- Small signal linear enhancement
- Security

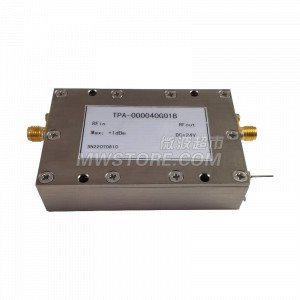

Description
| brand |
Tianhua Zhongwei |
| model |
TPA-000040G01B |
Electrical Specifications
| Gain |
40dB |
| Gain Flatness |
±2.5dB typ |
| Saturated Output Power |
34.7dBm typ |
| P1dB |
35dBm |
| ISWR |
2.5:1 |
| OSWR |
2.5:1 |
| Voltage |
24.0V |
| Current |
0.5A |
| Limit Voltage |
24.0V |
| Maximum Input Power |
+1dBm |
| Frequency Range |
0.001～4GHz |
Environmental Specifications
| Operating Temperature |
-20℃～+70℃ |
| Storage temperature |
-55℃～+100℃ |

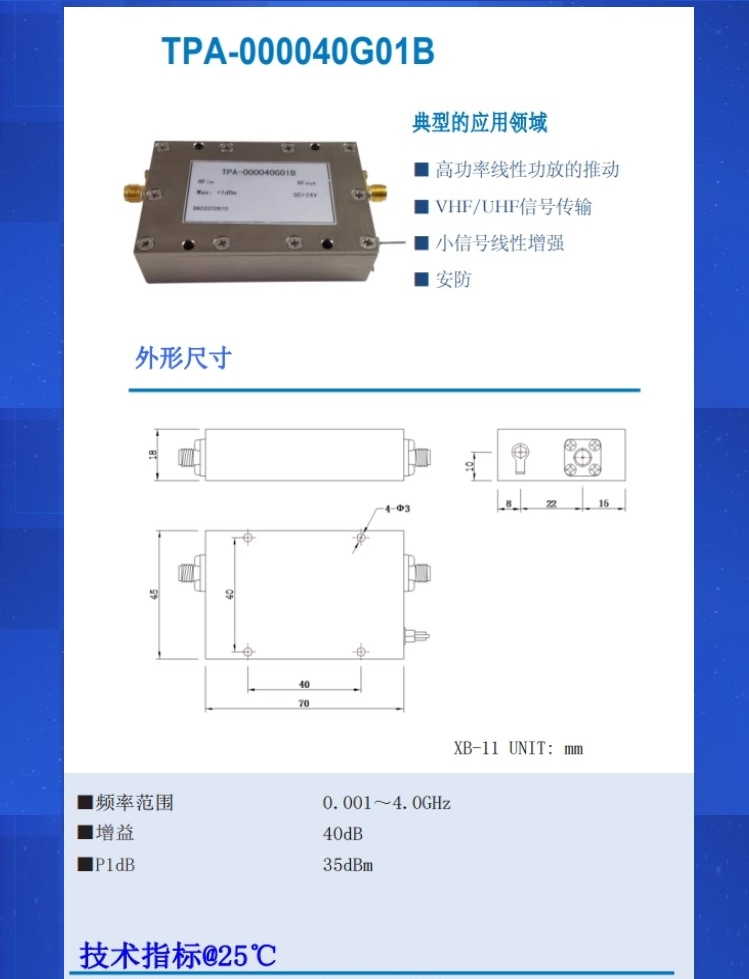

MECHANICAL CHARACTERISTICS
| Structural Dimension |
70mm×45mm×18mm |
| weight |
68g |
