Typical application fields
- instrument
- Small signal amplifier or preamplifier
- For laboratory testing
Description
| brand |
Tianhua Zhongwei |
| model |

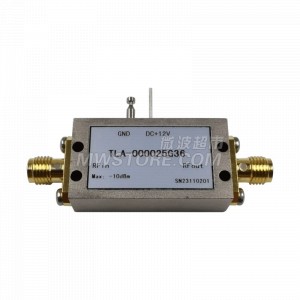

TLA-000025G36 |
Electrical Specifications
| Maximum inlet power |
-10dBm |
| Gain |
36dB typ |
| Gain Flatness |
±2.0dB typ |
| P1dB |
16dBm typ |
| Noise Figure |
4dB@2GHz |
| ISWR |
2.0:1 |
| OSWR |
2.0:1 |
| working voltage |
12.0V |
| working current |
150mA |
| Limit Voltage |
15V |
| Frequency Range |
100KHz～2.5GHz |
Environmental Specifications
| working temperature |
-20℃～70℃ |
| Storage temperature |
-55℃～100℃ |
MECHANICAL CHARACTERISTICS
| Structural Dimension |
35mm×18.6mm×10.2mm |
| weight |
18g |
