| Qty | 1 | 2 -5 | 6 -10 | 11 -20 | 21+ |
|---|---|---|---|---|---|
| Price | ￥2,400.00 | ￥2,352.00 | ￥2,280.00 | ￥2,208.00 | ￥2,160.00 |

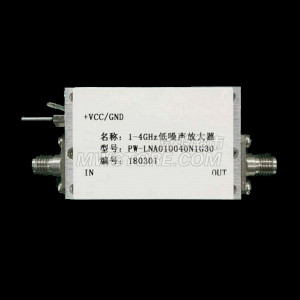

Low Noise Amplifier 1-4GHz ,1.4dB NF, 30dB Gain
| Connector 1 Series | SMA |
|---|---|
| Connector 1 Gender | Female |
| Connector 2 Series | SMA |
| Connector 2 Gender | Female |
| Output VSWR Max. | 1.4 Typical |
|---|---|
| Input VSWR Max. | 1.3 Typical |
| Operating DC Voltage | 8V |
| Gain Flatness | ± 1.5dB |
| Noise Figure | 1.4dB |
| Gain | ＞30dB |
| Frequency Range | 1~4GHz |
| Temperature Range | -40~+85℃ |
|---|
