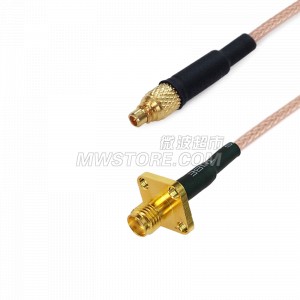

SMA Female(4-hole flange) to MMCX Male Cable Using RG316 Flexible Coax, DC-3GHz
Description
| Connector 1 Series |
SMA |
| Connector 1 Gender |
Female |
| Connector 1 Impedance |
50 Ohms |
| Connector 1 Polarity |
Standard |
| Connector 1 Body Style |
Straight |
| Connector 1 Body Material |
Brass Gold Plated |
| Connector 1 Mount Method |
4 Hole Flange |
| Connector 2 Series |
MMCX |
| Connector 2 Gender |
Male |
| Connector 2 Impedance |
50 Ohms |
| Connector 2 Polarity |
Standard |
| Connector 2 Body Style |
Straight |
| Connector 2 Body Material |
Brass Gold Plated |
| Connector 2 Mount Method |
None |
| For Cable |
RG316 |
Electrical Specifications
| Frequency Range |
DC-3G |
| VSWR |
1.25 |
| Insertion Loss |
See datasheet |
Environmental Specifications
| Temperature Range |
-55~+165℃ |
