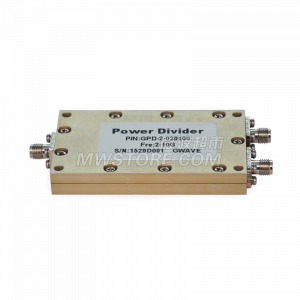

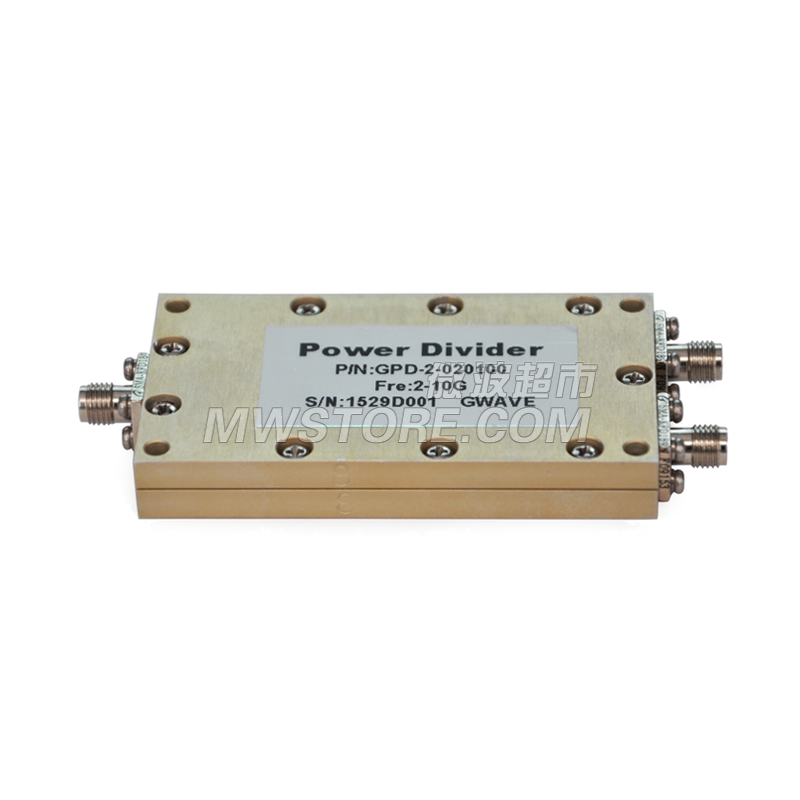

2 Way SMA Power Divider,2-10GHz,20W

Model:GPD-2-020100 101075ID:

Price List
$ US Dollar | ¥ 人民币

Qty 1 2 -5 6 -20 21 -50 51+
Price ¥1,100.00 ¥1,078.00 ¥1,045.00 ¥1,012.00 ¥990.00
Price: ¥1,100.00 /pcs
Qty
- +
Stock Status: In Stock
Add to Cart Inquiry Now

2 Way SMA Power Divider,2-10GHz,20W

Description
Conn.Type SMA(F)
Impedance, Ohms 50Ω
CW Power Max. 20W
Peak Power Max. 3kW
Electrical Specifications
Frequency Range 2 ~ 10G
Input VSWR Max. 1.4
Output VSWR Max. 1.4
Isolation Min. 18dB
Amp.Bal. Max. ±0.2dB
Insertion Loss 1.2dB
Environmental Specifications
Temperature Range -35 ~ +105℃
MECHANICAL CHARACTERISTICS
Outline Dim. 74x40x10mm
