All Categories >Adapters/RF Probe >Adapters >SMA Adapters >N(F)-SMA(F) Adapter, 4 Hole Flange, Hole Spacing 18.2mm,DC-12.7GHz

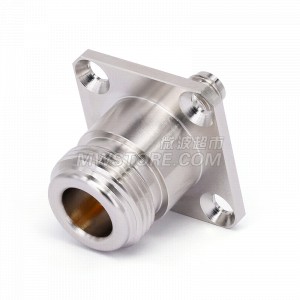

N(F)-SMA(F) Adapter, 4 Hole Flange, Hole Spacing 18.2mm,DC-12.7GHz

Model:N/SMA-KFK 100630ID:

Price List
$ US Dollar | ¥ 人民币

Qty 1-9 10 -49 50 -99 100 -999 1000+
Price ¥29.00 ¥28.42 ¥27.55 ¥26.68 ¥26.10
Price: ¥29.00 /pcs
Qty
- +
Leadtime: 1-3 Days
Add to Cart Inquiry Now

N(F)-SMA(F) Adapter, 4 Hole Flange, Hole Spacing 18.2mm,DC-12.7GHz

Description
Connector 1 Series N
Connector 1 Gender Female
Connector 1 Impedance 50 Ohms
Connector 1 Polarity Standard
Connector 1 Body Material Brass Nickel Plated
Connector 2 Series SMA
Connector 2 Gender Female
Connector 2 Impedance 50 Ohms
Connector 2 Polarity Standard
Connector 2 Body Material Brass Nickel Plated
Mount Method 4 Hole Flange
Body Style Straight
Electrical Specifications
Frequency Range DC-12.7G
VSWR ≤1.25
Environmental Specifications
Temperature Range -55~+165℃
